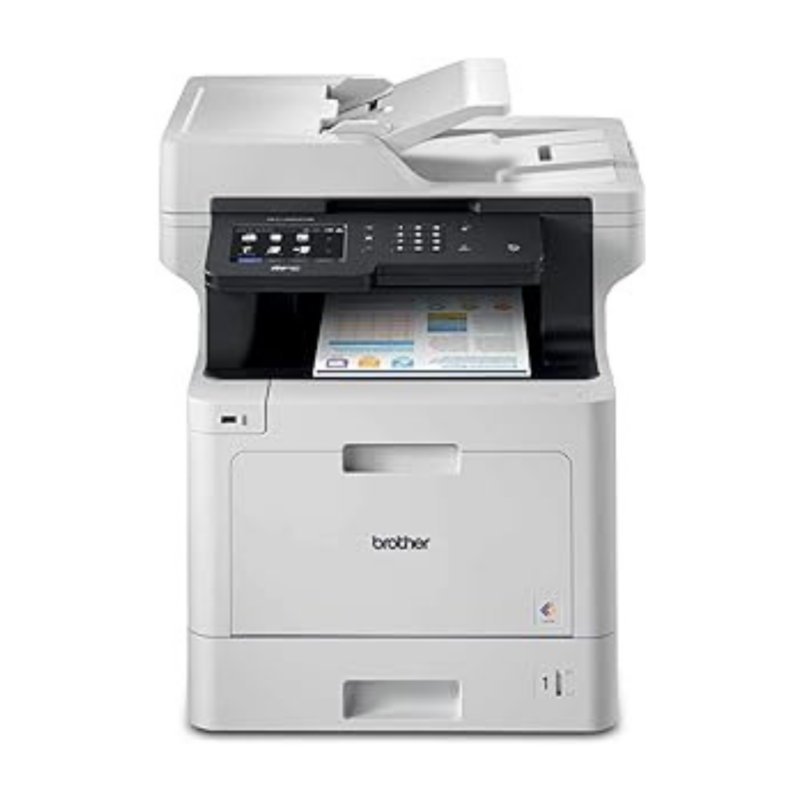

Brother MFC-L8900CDW

Brother MFC-L8900CDW

Availability: In Stock

$789.00

Category:

Description

General Specifications

Printer Type

  • Laser

Print Method

  • Electrophotographic Laser Printer

Memory Capacity

Standard

  • (MFC-L8610CDW/MFC-L8900CDW/MFC-L8895CDW/MFC-L8905CDW)

    512 MB
LCD (Liquid Crystal Display)

  • (MFC-L8610CDW)

    3.7 in. (93.4 mm) TFT Color touchscreen LCD  *1

  • (MFC-L8900CDW/MFC-L8895CDW)

    5.0 in. (125.9 mm) TFT Color touchscreen LCD  *1

  • (MFC-L8905CDW)

    7.0 in. (176.1 mm) TFT Color touchscreen LCD  *1

Power Source

  • 110 to 120 V AC 50/60 Hz

Power Consumption

(Average)

Peak

  • Approximately 1230 W

Printing *2

  • Approximately 600 W at 77°F (25°C)

Printing

(Quiet Mode) *2

  • Approximately 360 W at 77°F (25°C)

Copying *2

  • Approximately 600 W at 77°F (25°C)

Copying

(Quiet Mode) *2

  • Approximately 370 W at 77°F (25°C)

Ready *2

  • Approximately 75 W at 77°F (25°C)

Sleep *2

  • Approximately 9.5 W

Deep Sleep *2

  • (MFC-L8610CDW)

    Approximately 1.5 W

  • (MFC-L8900CDW/MFC-L8895CDW/MFC-L8905CDW)

    Approximately 1.7 W

Power Off *2 *3 *4

  • Approximately 0.02 W

Dimensions

(Typical outline view)


Unit: in. (mm)

  • (MFC-L8610CDW)

    * : 17.1 (435)

    ** : 21.2 (539)

    *** : 20.7 (526)

  • (MFC-L8900CDW/MFC-L8895CDW/MFC-L8905CDW)

    * : 19.5 (495)

    ** : 21.6 (549)

    *** : 20.7 (526)

Weights (with supplies)

  • (MFC-L8610CDW)

    61.1 lb (27.7 kg)

  • (MFC-L8900CDW)

    63.1 lb (28.6 kg)

  • (MFC-L8895CDW)

    63.2 lb (28.7 kg)

  • (MFC-L8905CDW)

    65.4 lb (29.7 kg)

Noise Level

Sound Pressure

Printing

  • LpAm = 49 dB (A)

Printing

(Quiet Mode)

  • LpAm = 44 dB (A)

Ready

  • LpAm = Inaudible

Sound Power

Printing

Monochrome

  • LWAd = 6.55 B (A)

Color

  • LWAd = 6.56 B (A)

Printing

(Quiet Mode)

Monochrome

  • LWAd = 6.00 B (A)

Color

  • LWAd = 6.00 B (A)

Ready

  • LWAd = Inaudible

Temperature

Operating

  • 50 to 90 °F (10 to 32 °C)

Storage

  • 32 to 104 °F (0 to 40 °C)

Humidity

Operating

  • 20 to 80% (without condensation)

Storage

  • 10 to 90% (without condensation)

Automatic Document Feeder (ADF)

  • (MFC-L8610CDW)

    Up to 50 sheets

  • (MFC-L8900CDW/MFC-L8895CDW/MFC-L8905CDW)

    Up to 70 sheets

For best results we recommend:

  • Temperature: 68 to 86 °F (20 to 30 °C)

  • Humidity: 50 to 70%

  • Paper: 20 lb (80 g/m2)

Laser Notice
*1
Measured diagonally
*2
USB connections to computer
*3
Measured according to IEC 62301 Edition 2.0.
*4
Power consumption varies slightly depending on the usage environment.

Document Size Specification

Document Size

ADF Width

  • 4.1 to 8.5 in. (105 to 215.9 mm)

ADF Length

  • 5.8 to 14.0 in. (147.3 to 355.6 mm)

Scanner Glass Width

  • Maximum 8.5 in. (215.9 mm)

Scanner Glass Length

  • (MFC-L8610CDW)

    Maximum 11.8 in. (300 mm)

  • (MFC-L8900CDW/MFC-L8895CDW/MFC-L8905CDW)

    Maximum 14 in. (355.6 mm)

Print Media Specifications

Paper Input

Paper Tray

(Standard)

Paper Type

  • Plain Paper, Letterhead, Colored Paper, Thin Paper, Recycled Paper

Paper Size

  • A4, Letter, A5, A5(Long Edge), A6, Executive, Legal, Folio, Mexico Legal

Paper Weight

  • 16 to 28 lb (60 to 105 g/m2)

Maximum Paper Capacity

  • Up to 250 sheets of 20 lb (80 g/m2) Plain Paper

Multi-Purpose Tray (MP tray)

Paper Type

  • Plain Paper, Letterhead, Colored Paper, Thin Paper, Thick Paper, Thicker Paper, Recycled Paper, Bond, Label, Envelope, Env. Thin, Env.Thick, Glossy Paper

Paper Size

  • Width:

    3 to 8.5 in. (76.2 to 215.9 mm)

  • Length:

    5 to 14 in. (127 to 355.6 mm)

  • Envelope:

    COM-10, DL, C5, Monarch

Paper Weight

  • 16 to 43 lb (60 to 163 g/m2)

Maximum Paper Capacity

  • Up to 50 sheets of 20 lb (80 g/m2) Plain Paper

  • Envelope: 10 envelopes up to 0.4 in. (10 mm) thick

Paper Tray 2, 3, 4

(Optional) *1 *2

Paper Type

  • Plain Paper, Letterhead, Colored Paper, Thin Paper, Recycled Paper

Paper Size

  • A4, Letter, A5, Executive, Legal, Folio, Mexico Legal

Paper Weight

  • 16 to 28 lb (60 to 105 g/m2)

Maximum Paper Capacity

  • LT-330CL

    Up to 250 sheets of 20 lb (80 g/m2) Plain Paper

  • LT-340CL *3

    Up to 500 sheets of 20 lb (80 g/m2) Plain Paper

Paper Output *4

Face Down Output Tray

  • Up to 150 Sheets of 20 lb (80 g/m2) Plain Paper (face down delivery to the face down output paper tray)

Face Up Output Tray

  • One sheet (face up delivery to the face up output tray)

2-sided

Automatic 2-sided Printing

Paper Type
  • Plain Paper, Letterhead, Colored Paper, Thin Paper, Recycled Paper, Glossy Paper

Paper Size

  • Letter, Legal, Folio, Mexico Legal

Paper Weight

  • 16 to 28 lb (60 to 105 g/m2)
*1
(MFC-L8610CDW) Maximum number of Lower Trays: Up to three LT-330CL Lower Trays
*2
(MFC-L8900CDW/MFC-L8895CDW/MFC-L8905CDW) Maximum number of Lower Trays: Up to three LT-330CL Lower Trays or up to two Lower Trays in any other combinations
*3
Applicable to MFC-L8900CDW/MFC-L8895CDW/MFC-L8905CDW
*4
For labels, we recommend removing the printed sheets from the output paper tray immediately after they exit the machine to avoid the possibility of smudging.

Fax Specifications

Compatibility

  • ITU-T Super Group 3

Coding System

  • MH / MR / MMR / JBIG

Modem Speed

  • 33,600 bps (with Automatic Fallback)

2-sided Print Receiving

  • Yes

Automatic 2-sided Sending

  • (MFC-L8900CDW/MFC-L8895CDW/MFC-L8905CDW)

    Yes (from ADF)

Scanning Width

  • Maximum 8.19 in. (208 mm)

Printing Width

  • Maximum 8.19 in. (208 mm)

Gray Scale

  • 8 bit / 256 levels

Resolution
Horizontal

  • 203 dpi
Vertical

  • Standard: 98 dpi

  • Fine: 196 dpi

  • Super fine: 392 dpi

  • Photo: 196 dpi
Address Book

  • 300 Locations
Groups

  • Up to 20
Broadcasting

  • 350 Locations
Automatic Redial

  • 1 time at 5 minutes intervals
Memory Transmission

  • Up to 500 pages *1
Out of Paper Reception

  • Up to 500 pages *1
*1
‘Pages’ refers to the ‘ITU-T Test Chart #1’ (a typical business letter, Standard resolution, JBIG code).

Copy Specification

Copy Width

  • Maximum 8.27 in. (210 mm)

Automatic 2-sided Copy

  • (MFC-L8900CDW/MFC-L8895CDW/MFC-L8905CDW)

    Yes (from ADF)
Sort Copy

  • Yes
Stack Copy

  • Up to 999 pages
Enlarge/Reduce

  • 25 to 400% (in increments of 1%)
Resolution

  • Maximum 1200 x 600 dpi
First Copy Out Time *1

Monochrome

  • Less than 16 seconds at 73.4°F (23°C) / 115 V

Color

  • Less than 17 seconds at 73.4°F (23°C) / 115 V
*1
From Ready Mode and standard tray

Scanner Specifications

Color / Black

  • Yes / Yes

TWAIN Compliant

  • Yes

    (Windows 7 / Windows 8 / Windows 8.1 / Windows 10)

    (Not available for macOS v10.15.x and v11.)

WIA Compliant

  • Yes

    (Windows 7 / Windows 8 / Windows 8.1 / Windows 10)

ICA Compliant

  • Yes

Color Depth

  • 48 bit color Processing (Input)

  • 24 bit color Processing (Output)

Gray Scale

  • 16 bit color Processing (Input)

  • 8 bit color Processing (Output)

Resolution *1

  • Up to 19200 x 19200 dpi (interpolated)

  • Up to 1200 x 2400 dpi (from Scanner Glass)

  • Up to 1200 x 600 dpi (from ADF)

Scanning Width

  • Maximum 8.27 in. (210 mm)

Automatic 2-sided Scanning

  • (MFC-L8900CDW/MFC-L8895CDW/MFC-L8905CDW)

    Yes (from ADF)
*1
Maximum 1200 × 1200 dpi scanning with the WIA driver in Windows 7, Windows 8, Windows 8.1 and Windows 10 (resolution up to 19200 × 19200 dpi can be selected by using the scanner utility)

Printer Specifications

Automatic 2-sided Print

  • Yes

Emulation

  • PCL6, BR-Script3, PDF Version 1.7, XPS Version 1.0

Resolution

  • 600 x 600 dpi, 2,400 dpi class (2400 x 600) quality

Print Speed *1  *2

1-sided print

Monochrome

  • Up to 33 pages/minute (Letter size)

    Up to 31 pages/minute (A4 size)

Color

  • Up to 33 pages/minute (Letter size)

    Up to 31 pages/minute (A4 size)

2-sided Print

Monochrome

  • Up to 14 sides/minute (Up to 7 sheets/minute) (Letter or A4 size)

Color

  • Up to 14 sides/minute (Up to 7 sheets/minute) (Letter or A4 size)

First Print Time *3

Monochrome

  • Less than 15 seconds at 73.4°F (23°C) / 115 V

Color

  • Less than 15 seconds at 73.4°F (23°C) / 115 V
*1
The print speed may change depending on the type of document you print.
*2
Print speed may be slower when the machine is connected by wireless LAN.
*3
From Ready mode and standard tray

Interface Specifications

USB *1 *2

  • Hi-Speed USB 2.0

    Use a USB 2.0 interface cable that is no more than 6 feet (2.0 meters) long.

LAN

  • 10Base-T/100Base-TX/1000Base-T *3 *4

Wireless LAN

  • IEEE 802.11b/g/n (Infrastructure Mode)

    IEEE 802.11g/n (Wi-Fi Direct®)

NFC *5

  • (MFC-L8900CDW/MFC-L8895CDW/MFC-L8905CDW)

    Yes
*1
Your machine has a USB 2.0 Hi-Speed interface. The machine can also be connected to a computer that has a USB 1.1 interface.
*2
Third party USB ports are not supported.
*3
Use a straight-through Category 5e (or greater) twisted-pair cable.
*4
When you connect the machine to a Gigabit Ethernet Network, use network devices complying with the 1000BASE-T specification.
*5
When you connect an external IC card reader, use a HID class driver supported device.

Direct Print Feature Specifications

Compatibility

  • PDF version1.7, JPEG, Exif+JPEG, PRN (created by own printer driver), TIFF (scanned by Brother models), XPS version 1.0
Interface

  • USB direct interface : Front x 1

Supported Protocols and Security Features

Ethernet

10Base-T/100Base-TX/1000Base-T

Wireless LAN

IEEE 802.11b/g/n (Infrastructure Mode), IEEE 802.11g/n (Wi-Fi Direct)

Protocols (IPv4)

ARP, RARP, BOOTP, DHCP, APIPA(Auto IP), WINS/NetBIOS name resolution, DNS Resolver, mDNS, LLMNR responder, LPR/LPD, Custom Raw Port/Port9100, POP3, SMTP Client, IPP/IPPS, FTP Client and Server, CIFS Client, TELNET Server, SNMPv1/v2c/v3, HTTP/HTTPS server, TFTP client and server, ICMP, Web Services (Print/Scan), SNTP Client, LDAP, IMAP4

Protocols (IPv6)

NDP, RA, DNS resolver, mDNS, LLMNR responder, LPR/LPD, Custom Raw Port/Port9100, IPP/IPPS, POP3, SMTP Client, FTP Client and Server, CIFS Client, TELNET Server, SNMPv1/v2c/v3, HTTP/HTTPS server, TFTP client and server, ICMPv6, SNTP Client, LDAP, Web Services (Print/Scan), IMAP4

Network Security (Wired)

APOP, SMTP-AUTH, SSL/TLS (IPPS, HTTPS, SMTP, POP3, IMAP4), SNMP v3 802.1x (EAP-MD5, EAP-FAST, PEAP, EAP-TLS, EAP-TTLS), Kerberos, IPSec

Network Security (Wireless)

APOP, SMTP-AUTH, SSL/TLS (IPPS, HTTPS, SMTP, POP3, IMAP4), SNMP v3, 802.1x (LEAP, EAP-FAST, PEAP, EAP-TLS, EAP-TTLS), Kerberos, IPSec

Wireless Network Security

WEP 64/128 bit, WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES) *1

Wireless Certification

Wi-Fi Certification Mark License (WPA™/WPA2™ – Enterprise, Personal), Wi-Fi Protected Setup (WPS) Identifier Mark License, Wi-Fi CERTIFIED™ Wi-Fi Direct

*1
Wi-Fi Direct supports WPA2-PSK (AES) only.
