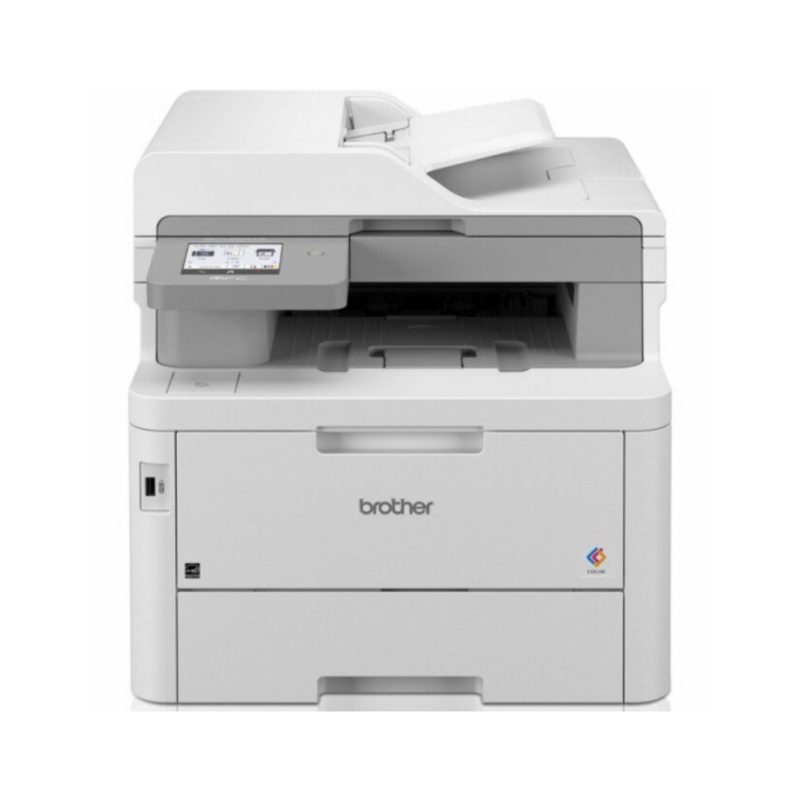

Brother MFC-L8395CDW

Brother MFC-L8395CDW

Availability: In Stock

$879.00

Category:

Description

General Specifications

Printer Type

  • LED

Print Method

  • Electrophotographic LED Printer

Memory Capacity

Standard

  • 512 MB

Machine display

  • 3.5 in. (87.6 mm) TFT Color touchscreen LCD *1

Power Source

  • 110 V to 120 V AC 50/60 Hz

Power Consumption

(Average)

Peak

  • Approximately 960 W

Printing *2

  • Approximately 660 W at 77°F (25°C)

Printing

(Quiet Mode) *2

  • Approximately 310 W at 77°F (25°C)

Copying *2

  • Approximately 660 W at 77°F (25°C)

Copying

(Quiet Mode) *2

  • Approximately 310 W at 77°F (25°C)

Ready *2

  • Approximately 70 W at 77°F (25°C)

Sleep *2

  • Approximately 7 W

Deep Sleep *2

  • Approximately 0.55 W

Power Off *3 *4

  • Approximately 0.02 W

Dimensions

(Typical outline view)




Unit: in. (mm)

  • * : 16.1 (410)

    ** : 15.8 (401)

    *** : 18.2 (462)

Weight (with supplies)

  • 47.8 lb (21.7 kg)

Noise Level

Sound Pressure

Printing

  • LpAm = 48 dB (A)

Printing

(Quiet Mode)

  • LpAm = 43 dB (A)

Ready
  • Default: Inaudible *5

Sound Power

Printing *6

Monochrome

  • LWAc = 6.62 B (A)

Color

  • LWAc = 6.67 B (A)

Printing

(Quiet Mode)

Monochrome

  • LWAc = 5.79 B (A)

Color

  • LWAc = 5.86 B (A)

Ready
  • Default: Inaudible *7

Temperature

Operating

  • From 50°F to 90.5°F (10°C to 32.5°C)

Storage

  • From 32°F to 104°F (0°C to 40°C)

Humidity

Operating

  • 20% to 80% (without condensation)

Storage

  • 35 to 85% (without condensation)

Automatic Document Feeder (ADF)

  • Up to 50 sheets

For best results we recommend:

  • Temperature: 68°F to 86°F (20°C to 30°C)

  • Humidity: 50% to 70%

  • Paper: 20 lb (80 g/m2)
*1
Measured diagonally.
*2

Measured when the machine is connected using the same network connection as the ENERGY STAR Ver. 3.1 test method.

*3

Measured according to IEC 62301 Edition 2.0.

*4

Power consumption varies slightly depending on the usage environment.

*5
If fan motor is functioning: LpAm = 40 dB (A)
*6
Measured in accordance with the method described in ISO 7779.
*7

  • If fan motor is functioning: LWAc = 3.17 B (A)

Document Size Specification

Document Size

ADF Width

  • 4.1 in. to 8.5 in. (105 mm to 215.9 mm)

ADF Length

  • 5.8 in. to 14.0 in. (147.3 mm to 355.6 mm)

Scanner Glass Width

  • Maximum 8.5 in. (215.9 mm)

Scanner Glass Length

  • Maximum 11.8 in. (300 mm)

Print Media Specifications

Paper Input

Paper Tray

(Standard)

Paper Type

  • Plain Paper, Thin Paper, Thick Paper, Recycled Paper

Paper Size

  • A4, Letter, B5 (JIS), B5 (ISO), A5, A5 (Long Edge), B6 (JIS), A6, Executive, Legal, Folio, Mexico Legal, India Legal, 16K(195x270mm), A4 Short (270mm Paper)

Paper Weight

  • 16 to 43 lb (60 to 163 g/m²)

Maximum Paper Capacity

  • Up to 250 sheets of 20 lb (80 g/m2) Plain Paper

Multi-Purpose Tray (MP tray)

Paper Type

  • Plain Paper, Thin Paper, Thick Paper, Recycled Paper, Bond, Label, Envelope, Env. Thin, Env.Thick, Glossy Paper

Paper Size

  • Width:

    3.0 in. to 8.5 in. (76.2 mm to 216 mm)

  • Length:

    4.57 in. to 14 in. (116 mm to 355.6 mm)

  • Envelope:

    COM-10, DL, C5, Monarch

Paper Weight

  • 16 to 43 lb (60 to 163 g/m2)

Maximum Paper Capacity

  • Up to 30 sheets of 20 lb (80 g/m2) Plain Paper

  • Envelope: three envelopes up to 0.2 in. (6 mm) thick

Paper Tray 2

(Optional)

Paper Type
  • Plain Paper, Thin Paper, Recycled Paper

Paper Size
  • A4, Letter, B5 (JIS), A5, Executive, Legal, Folio, Mexico Legal, India Legal, 16K (195x270mm), A4 Short (270mm Paper)

Paper Weight

  • 16 to 28 lb (60 to 105 g/m2)

Maximum Paper Capacity

  • Up to 250 sheets of 20 lb (80 g/m2) Plain Paper

Paper Output

*1

Face Down Output Tray

  • Up to 150 sheets of 20 lb (80 g/m2) Plain Paper (face-down delivery to the face-down output paper tray)

Face Up Output Tray

  • One sheet (face up delivery to the face up output tray)

2-sided

Automatic 2-sided Printing

Paper Type
  • Plain Paper, Thin Paper, Recycled Paper

Paper Size

  • Letter, Legal, Folio, Mexico Legal, India Legal

Paper Weight

  • 16 to 28 lb (60 to 105 g/m2)
*1
For labels, we recommend removing the printed sheets from the output paper tray immediately after they exit the machine to avoid the possibility of smudging.

Fax Specifications

NOTE

This feature is available for MFC models.

Compatibility

  • ITU-T Super Group 3

Coding System

  • MH / MR / MMR / JBIG

Modem Speed

  • 33,600 bps (with Automatic Fallback)

2-sided Print Receiving

  • Yes

Automatic 2-sided Sending

  • Yes (from the ADF)

Scanning Width

  • Maximum 8.19 in. (208 mm)

Printing Width

  • Maximum 8.17 in. (207.4 mm)

Gray Scale

  • 8 bit / 256 levels

Resolution
Horizontal

  • 203 dpi
Vertical

  • Standard: 98 dpi

  • Fine: 196 dpi

  • Super fine: 392 dpi

  • Photo: 196 dpi
Address Book

  • 300 Locations
Groups

  • Up to 20
Broadcasting

  • 350 Locations
Automatic Redial

  • 1 time at 5-minute intervals
Memory Transmission

  • Up to 500 pages  *1
Out of Paper Reception

  • Up to 500 pages  *1
*1
‘Pages’ refers to the ‘ITU-T TestChart Document No.1’ (a typical business letter, Standard resolution, JBIG code).

Copy Specification

Copy Width

  • Maximum 8.27 in. (210 mm)

Automatic 2-sided Copy

  • Yes (from the ADF)
Sort Copy

  • Yes
Stack Copy

  • Up to 999 pages
Enlarge/Reduce

  • 25 to 400% (in increments of 1%)
Resolution

  • Maximum 600 x 600 dpi
First Copy Out Time *1

Monochrome

  • Less than 13.5 seconds at 73.4°F (23°C) / 115 V

Color

  • Less than 14.5 seconds at 73.4°F (23°C) / 115 V
*1
From Ready Mode and standard tray.

Scanner Specifications

Color / Black

  • Yes / Yes

TWAIN Compliant

  • Yes

    (Windows 10 / Windows 11)

WIA Compliant

  • Yes

    (Windows 10 / Windows 11)

Color Depth

  • 48 bit color Processing (Input)

  • 24 bit color Processing (Output)

Gray Scale

  • 16 bit color Processing (Input)

  • 8 bit color Processing (Output)

Resolution *1

  • Up to 19200 x 19200 dpi (interpolated)

  • Up to 1200 x 1200 dpi (from Scanner Glass)

  • Up to 600 x 600 dpi (from the ADF)

Scanning Width

  • Maximum 8.27 in. (210 mm)

Automatic 2-sided Scanning

  • Yes (from the ADF)
*1
Maximum 600 × 600 dpi scanning with the WIA driver in Windows 10 and Windows 11 (resolution up to 19200 × 19200 dpi can be selected by using the scanner utility).

Printer Specifications

Automatic 2-sided Print

  • Yes

Emulation

PCL5e, PCL5c, PCL6 (PCL XL Class3.0), BR-Script3, PDF Version 1.7, XPS Version 1.0

Resolution

  • 600 x 600 dpi, 2,400 dpi class (600 x 2400) quality

Print Speed  *1

1-sided Print

*2

Monochrome

  • Up to 31 pages/minute (Letter size)

    Up to 30 pages/minute (A4 size)

Color

  • Up to 31 pages/minute (Letter size)

    Up to 30 pages/minute (A4 size)

2-sided Print

Monochrome

  • Up to 12 sides/minute (Up to 6 sheets/minute) (Letter or A4 size)

Color

  • Up to 12 sides/minute (Up to 6 sheets/minute) (Letter or A4 size)

First Print Time *3

Monochrome

  • Less than 12.5 seconds at 73.4°F (23°C) / 115 V

Color

  • Less than 12.5 seconds at 73.4°F (23°C) / 115 V
*1
The print speed may be slower when the machine is connected by wireless LAN.
*2
These print speeds are for 1-sided printing and measured in accordance with the ISO/IEC 24734 standard.
*3
Printing from Ready mode and standard tray.

Interface Specifications

USB *1 *2

  • Hi-Speed USB 2.0

    Use a USB 2.0 interface cable that is no more than 6 feet (2 meters) long.

LAN

  • 10Base-T/100Base-TX/1000Base-T *3

Wireless LAN

5 GHz

IEEE 802.11a/n (Infrastructure Mode)

IEEE 802.11a/n (Wi-Fi Direct®)

2.4 GHz

IEEE 802.11b/g/n (Infrastructure Mode)

IEEE 802.11g/n (Wi-Fi Direct®)

NFC *4

  • Yes
*1
Your machine has a USB 2.0 Hi-Speed interface. The machine can also be connected to a computer that has a USB 1.1 interface.
*2
Third party USB hub devices are not supported.
*3
Use a Category 5e (or greater) network cable.
*4
When you connect an external IC card reader, use a HID class driver supported device.

Direct Print Feature Specifications

Compatibility

  • PDF version1.7, JPEG, Exif+JPEG, PRN (created by the machine’s own printer driver), TIFF (scanned by Brother models), XPS version 1.0
Interface

  • USB direct interface: Front x1

Supported Protocols and Security Features

Ethernet

10Base-T/100Base-TX/1000Base-T

Wireless LAN (5 GHz)

IEEE 802.11a/n (Infrastructure Mode), IEEE 802.11a/n (Wi-Fi Direct)

Wireless LAN (2.4 GHz)

IEEE 802.11b/g/n (Infrastructure Mode), IEEE 802.11g/n (Wi-Fi Direct)

Protocols (IPv4)

  • ARP, RARP, BOOTP, DHCP, APIPA (Auto IP), WINS/NetBIOS name resolution, DNS Resolver, mDNS, LLMNR responder, LPR/LPD, Custom Raw Port/Port9100, POP3, SMTP Client, IPP/IPPS, FTP Client and Server, CIFS Client, TELNET Server, SNMPv1/v2c/v3, HTTP/HTTPS server, TFTP client and server, ICMP, Web Services (Print/Scan), SNTP Client, LDAP, IMAP4, Syslog

Protocols (IPv6)

  • NDP, RA, DNS resolver, mDNS, LLMNR responder, LPR/LPD, Custom Raw Port/Port9100, IPP/IPPS, POP3, SMTP Client, FTP Client and Server, CIFS Client, TELNET Server, SNMPv1/v2c/v3, HTTP/HTTPS server, TFTP client and server, ICMPv6, SNTP Client, LDAP, Web Services (Print/Scan), IMAP4, Syslog

Network Security (Wired)

APOP, SMTP-AUTH, SSL/TLS (IPP, HTTP, SMTP, POP3, IMAP4, FTP), SNMP v3, 802.1x (EAP-MD5, EAP-FAST, PEAP, EAP-TLS, EAP-TTLS), Kerberos, IPsec

Network Security (Wireless)

APOP, SMTP-AUTH, SSL/TLS (IPP, HTTP, SMTP, POP3, IMAP4, FTP), SNMP v3, 802.1x (EAP-FAST, PEAP, EAP-TLS, EAP-TTLS), Kerberos, IPsec

Wireless Network Security

WEP 64/128 bit, WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES), WPA3-SAE (AES) (Wi-Fi Direct supports WPA2-PSK (AES) only)

Wireless Certification

Wi-Fi Certification Mark License (WPA3™ – Enterprise, Personal), Wi-Fi Protected Setup™ (WPS) Identifier Mark License, Wi-Fi CERTIFIED™ Wi-Fi Direct

Computer Requirements Specifications

Supported Operating Systems And Software Functions

Computer Platform & Operating System Version Computer Interface Processor Hard Disk Space to Install *1
USB *2 Wired LAN

Wireless LAN

 For Drivers For Applications

(including Drivers)

Windows Operating System

Windows 10 Home / 10 Pro / 10 Education / 10 Enterprise *3 *4

Printing

PC Fax *5

Scanning

32 bit (x86) or 64 bit (x64) processor

80 MB

1.8 GB

Windows 11 Home / 11 Pro / 11 Education / 11 Enterprise *3 *4

64 bit (x64) processor

Windows Server 2012

Printing

Scanning

Printing

64 bit (x64) processor

80 MB

80 MB

Windows Server 2012 R2

Windows Server 2016

Windows Server 2019

Windows Server 2022

Mac Operating System *7

macOS v11

Printing

PC Fax (Send) *5 *6

Scanning

64bit processor

N/A

500 MB

macOS v12

macOS v13

Chrome OS

Printing

Scanning

N/A

N/A

N/A
*1

An Internet connection is required to install the software if the installation disc is not supplied.

*2

Third party USB ports are not supported.

*3
For WIA, 1200×1200 resolution. Brother Scanner Utility enables resolutions up to 19200 x 19200 dpi.
*4
PaperPort™ 14SE supports Windows 10 and Windows 11.
*5
PC Fax supports black and white only.
*6

AirPrint only.

*7
macOS Disclaimer AirPrint capable: Printing or scanning via macOS requires the use of AirPrint. Mac drivers are not provided for this machine.

For the latest driver updates, go to your model’s Downloads page at support.brother.com/downloads.

For the latest supported OS, go to your model’s Supported OS page at support.brother.com/os.

All trademarks, brand and product names are the property of their respective companies.
